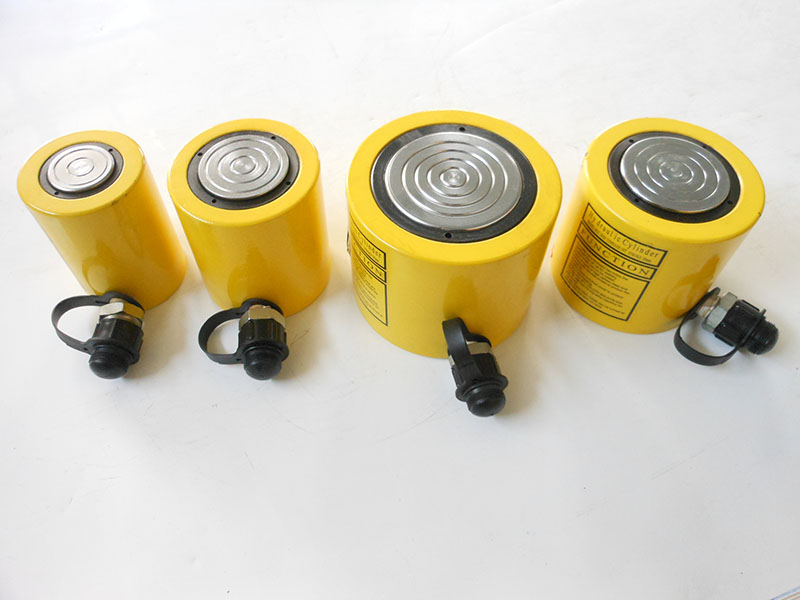

RC series single acting hydraulic cylinders

RC series single acting hydraulic cylinders

Short Description:

RC series single acting hydraulic cylinders...


Product Details

Product Tags

RC series single acting hydraulic cylinders, cover a wide range of models, such as RC-1050, RC-2050, RC-3050, RC-5050, RC-10050, RC-15050, RC-20050, RC-10100, RC-20100, RC-30100, RC-50100, RC-100100, RC-150100, RC-200100, RC-10150, RC-20150, RC-30150, RC-50150, RC-100150, RC-200150 and models according the hydraulic tonnage and stroke.

Models Tonnage (ton) Stroke (mm) Coll. Height (mm) Outside Dia. (mm) Plunger Dia. (mm) Weight (kg)
RC-1050 10 50 105 64 38 2.3
RC-2050 20 50 105 84 52 3.8
RC-3050 30 50 108 104 65 6.2
RC-5050 50 50 112 128 80 9.0
RC-10050 100 50 125 178 110 21.4
RC-15050 150 50 132 208
31.0
RC-20050 200 50 155 238
53.4
RC-10100 10 100 155 64 38 3.2
RC-20100 20 100 160 84 52 5.8
RC-30100 30 100 165 104 65 9.8
RC-50100 50 100 165 128 80 13.4
RC-100100 100 100 178 178 110 28.8
RC-150100 150 100 182 208
43.0
RC-200100 200 100 205 238
67.0
RC-10150 10 150 202 64 38 4.6
RC-20150 20 150 209 84 52 8.2
RC-30150 30 150 215 104 65 12.4
RC-50150 50 150 215 128 80 16.6
RC-100150 100 150 220 178 110 35.0
RC-200150 200 150 255 238
80.0
RC-1030 10 30 85 64 38 2.1
RC-2030 20 30 85 84 52 3.2
RC-3030 30 30 88 104 65 5.3
RC-5030 50 30 90 128 80 7.8
RC-10030 100 30 105 178 110 17.9














Suitable for single acting hydraulic hand pumps, electric motor hydraulic pumps.
