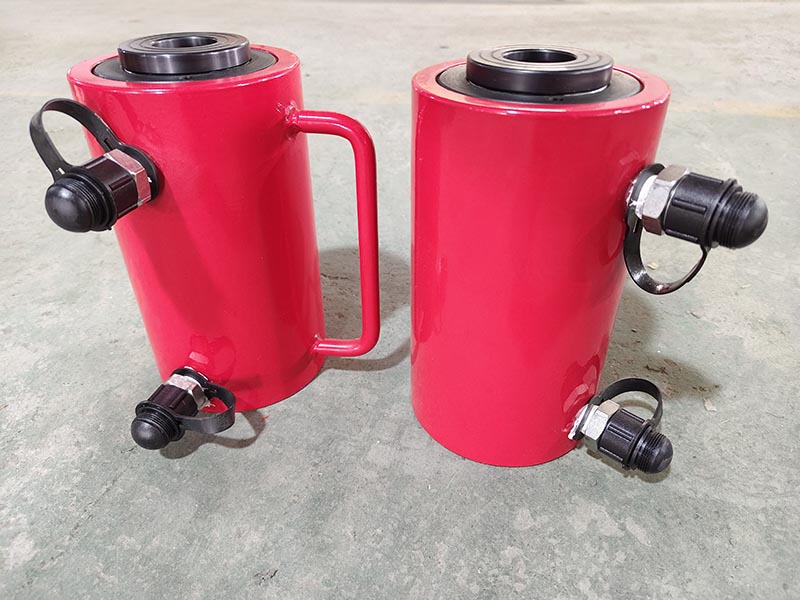

RRCH double acting hollow plunger hydraulic cylinders

RRCH series double acting hollow plunger style hydraulic cylinders.

Models	Tonnage (ton)	Stroke (mm)	Coll. Height (mm)	Outside Dia. (mm)	Plunger Dia. (mm)	Center Hole (mm)	Weight (kg)
RRCH-20100	20	100	200	99	54	28	10.5
RRCH-30100	30	100	205	119	64	33	14.1
RRCH-50100	50	100	210	148	79	48	22.1
RRCH-60100	60	100	210	158	89	54	24.1
RRCH-60150	60	150	260	158	89	54	28.6
RRCH-100100	100	100	240	208	129	80
RRCH-150100	150	100	240	250	154	90

A double acting hydraulic manual pump, or electric motor hydraulic pump, will be required.
