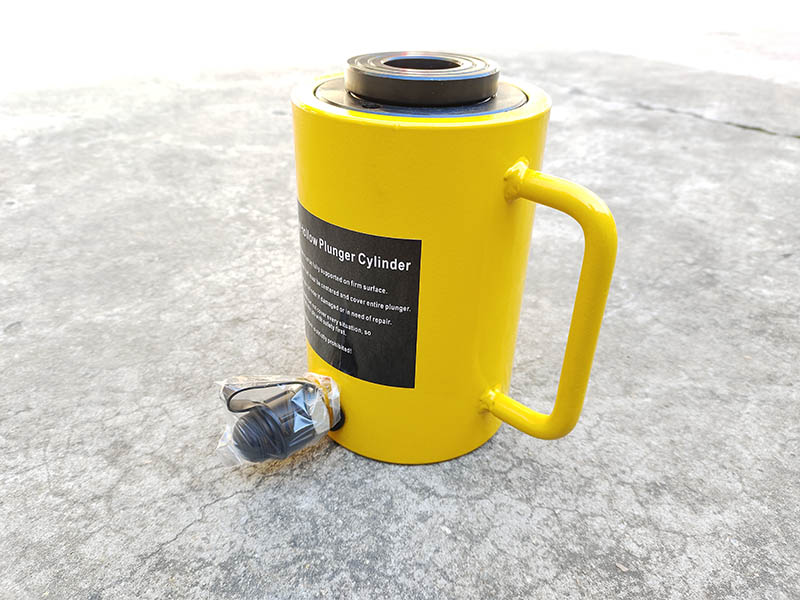

RCH series single acting hollow plunger hydraulic cylinders
RCH series single acting hollow plunger hydraulic cylinders, including RCH2050, RCH-3050, RCH-10100, RCH-30100, RCH-6050, RCH-60100, RCH-10075, RCH-1050, RCH-10100, RCH-4050, RCH-40100, RCH-15075 and etc.
| Models | Tonnage (ton) | Stroke (mm) | Coll. Height (mm) | Outside Dia. (mm) | Plunger Dia. (mm) | Center Hole (mm) | Weight (kg) |
| RCH-1050 | 10 | 50 | 130 | 74 | 42 | 20 | 3.5 |
| RCH-10100 | 10 | 100 | 196 | 74 | 42 | 20 | 5.3 |
| RCH-2050 | 20 | 50 | 150/162 | 98 | 54 | 28 | 7.0 |
| RCH-20100 | 20 | 100 | 202/214 | 98 | 54 | 28 | 10.0 |
| RCH-3050 | 30 | 50 | 171/183 | 113 | 63 | 33 | 10.3 |
| RCH-30100 | 30 | 100 | 221/233 | 113 | 63 | 33 | 12.7 |
| RCH-4050 | 40 | 50 | 170/181 | 139 | 73 | 43 | 16.2 |
| RCH-40100 | 40 | 100 | 218/229 | 139 | 73 | 43 | 19.0 |
| RCH-6050 | 60 | 50 | 210/221 | 158 | 91 | 54 | 24.6 |
| RCH-60100 | 60 | 100 | 260/271 | 158 | 91 | 54 | 30.0 |
| RCH-10075 | 100 | 75 | 240/250 | 216 | 127 | 80 | 57.0 |
| RCH-15075 | 150 | 75 | 240/250 | 252 | 127 | 80 |
|
| RCH- |
|
|
|
|
|
|
|
The coupling can be NPT 3/8 male coupling connector, or female coupling.
