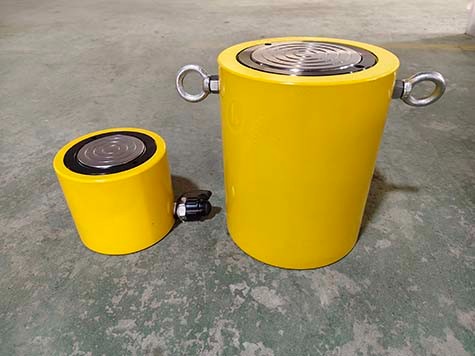

RSC series single acting hydraulic cylinders

Short Description:

RSC series single acting hydraulic cylinders, RSC-3050, RSC-5050, RSC-30100, RSC-50100...

Product Details

Product Tags

RSC series single acting hydraulic cylinders, cover a wide range of models, such as RSC-1050, RSC-2050, RSC-3050, RSC-5050, RSC-10050, RSC-15050, RSC-20050, RSC-10100, RSC-20100, RSC-30100, RSC-50100, RSC-100100, RSC-150100, RSC-200100, RSC-10150, RSC-20150, RSC-30150, RSC-50150, RSC-100150, RSC-200150 and models according the hydraulic tonnage and stroke.

Models	Tonnage (ton)	Stroke (mm)	Coll. Height (mm)	Outside Dia. (mm)	Plunger Dia. (mm)	Weight (kg)
RSC-1050	10	50	105	64	38	2.3
RSC-2050	20	50	105	84	52	3.8
RSC-3050	30	50	108	104	65	6.2
RSC-5050	50	50	112	128	80	9.0
RSC-10050	100	50	125	178	110	21.4
RSC-15050	150	50	132	208		31.0
RSC-20050	200	50	155	238		53.4
RSC-10100	10	100	155	64	38	3.2
RSC-20100	20	100	160	84	52	5.8
RSC-30100	30	100	165	104	65	9.8
RSC-50100	50	100	165	128	80	13.4
RSC-100100	100	100	178	178	110	28.8
RSC-150100	150	100	182	208		43.0
RSC-200100	200	100	205	238		67.0
RSC-10150	10	150	202	64	38	4.6
RSC-20150	20	150	209	84	52	8.2
RSC-30150	30	150	215	104	65	12.4
RSC-50150	50	150	215	128	80	16.6
RSC-100150	100	150	220	178	110	35.0
RSC-200150	200	150	255	238		80.0
RSC-1030	10	30	85	64	38	2.1
RSC-2030	20	30	85	84	52	3.2
RSC-3030	30	30	88	104	65	5.3
RSC-5030	50	30	90	128	80	7.8
RSC-10030	100	30	105	178	110	17.9
RSC-20200	20	200		84	52
RSC-30200	30	200		104	65
