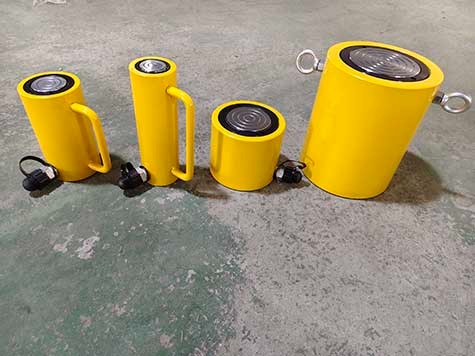

FCY series single acting hydraulic cylinders
FCY series single acting long stroke hydraulic cylinders, including models FCY-10100, FCY-20100, FCY-30100, CY-50100, FCY-100100, FCY-200100, FCY-300100, FCY-10150, FCY-20150, FCY-30150, FCY-50150, FCY-100150, FCY-200150, FCY-300150.
| Models | Tonnage (ton) | Stroke (mm) | Coll. Height (mm) | Outside Dia. (mm) | Plunger Diam. (mm) | Weight (kg) |
| FCY-10100 | 10 | 100 | 155 | 64 | 38 | 3.2 |
| FCY-20100 | 20 | 100 | 160 | 84 | 52 | 5.8 |
| FCY-30100 | 30 | 100 | 165 | 104 | 65 | 9.8 |
| FCY-50100 | 50 | 100 | 165 | 128 | 80 | 13.4 |
| FCY-100100 | 100 | 100 | 178 | 178 | 110 | 28.8 |
| FCY-150100 | 150 | 100 | 182 | 208 |
|
43.0 |
| FCY-200100 | 200 | 100 | 205 | 238 |
|
67.0 |
| FCY-300100 | 300 | 100 |
|
|
|
|
| FCY-10150 | 10 | 150 | 202 | 64 | 38 | 4.6 |
| FCY-20150 | 20 | 150 | 209 | 84 | 52 | 8.2 |
| FCY-30150 | 30 | 150 | 215 | 104 | 65 | 12.4 |
| FCY-50150 | 50 | 150 | 215 | 128 | 80 | 16.6 |
| FCY-100150 | 100 | 150 | 220 | 178 | 110 | 35.0 |
| FCY-150150 | 150 | 150 |
|
208 |
|
|
| FCY-200150 | 200 | 150 | 255 | 238 |
|
80.0 |
