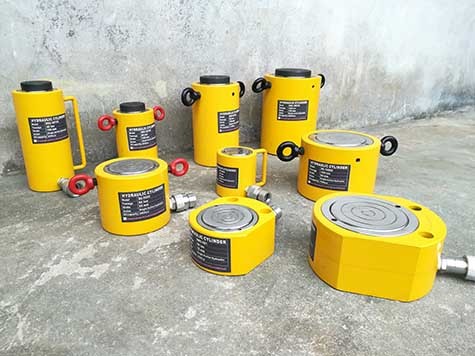

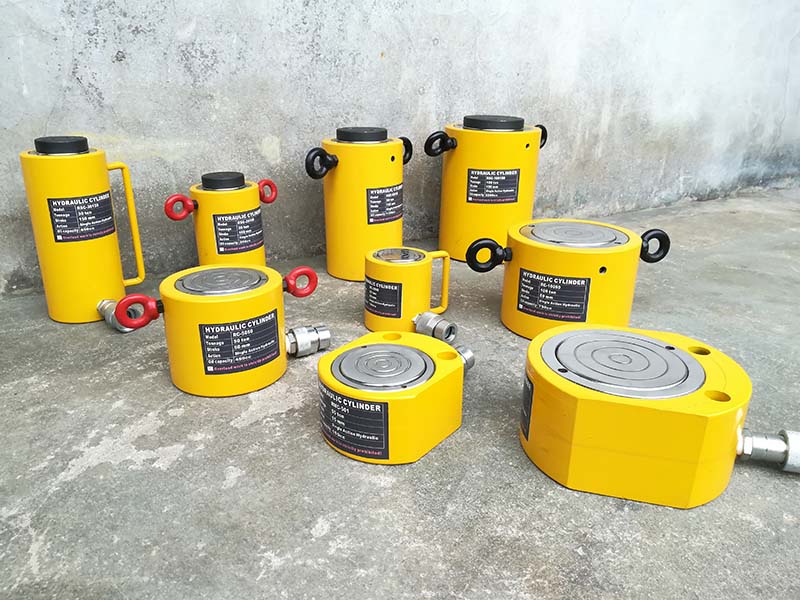

FPY series low height hydraulic cylinders

FPY series low height hydraulic cylinders, single acting cylinders, including models FPY-101, FPY-201, FPY-301, FPY-501, FPY-1001, FPY-1501, FPY-2001.

Models	Tonnage (ton)	Stroke (mm)	Coll. Height (mm)	Outside Dia. (mm)	Plunger Dia. (mm)	Weight (kg)
FPY-101	10	10	45	84*62	38	1.6
FPY-201	20	12	55	99*80	52	2.8
FPY-301	30	15	64	119*98	65	4.8
FPY-501	50	18	71	140*122	80	8.1
FPY-1001	100	20	90	198*167	110	17.1
FPY-1501	150	22	100	228*200		30.0
FPY-2001	200	22	108	258*238		40

We recommend hydraulic manual pumps to operate FPY series cylinders.
