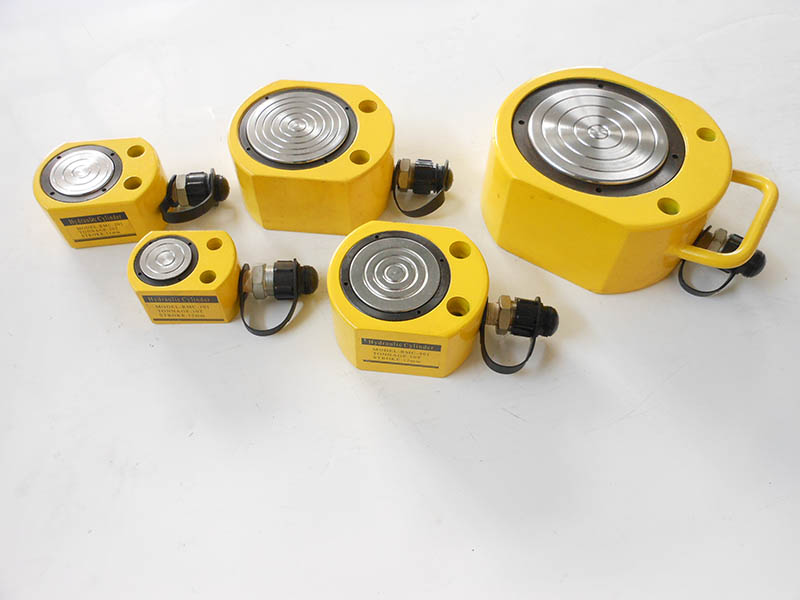

RMC series low height hydraulic cylinders
RMC series low height hydraulic cylinders, RMC-101, RMC-201, RMC-301, RMC-501, RMC-1001, RMC-2001.
Single acting, thin height style.
| Models | Tonnage (ton) | Stroke (mm) | Height (mm) | Outside Size (mm) | Plunger Diameter (mm) | Weight (kg) |
| RMC-101 | 10 | 10 | 45 | 84*62 | 38 | 1.6 |
| RMC-201 | 20 | 12 | 55 | 99*80 | 52 | 2.8 |
| RMC-301 | 30 | 15 | 64 | 119*98 | 65 | 4.8 |
| RMC-501 | 50 | 18 | 71 | 140*122 | 80 | 8.1 |
| RMC-1001 | 100 | 20 | 90 | 198*167 | 110 | 17.1 |
| RMC-1501 | 150 | 22 | 100 | 228*200 |
|
30.0 |
| RMC-2001 | 200 | 22 | 108 | 25*238 |
|
40.0 |
Need to be operated by hydraulic hand pumps, or foot pumps, or electric motor hydraulic pumps.
